Clear Solid Polycarbonate Sheet Routing Machining Cut Polycarbonate Solid Sheet

Previous Next

Detail

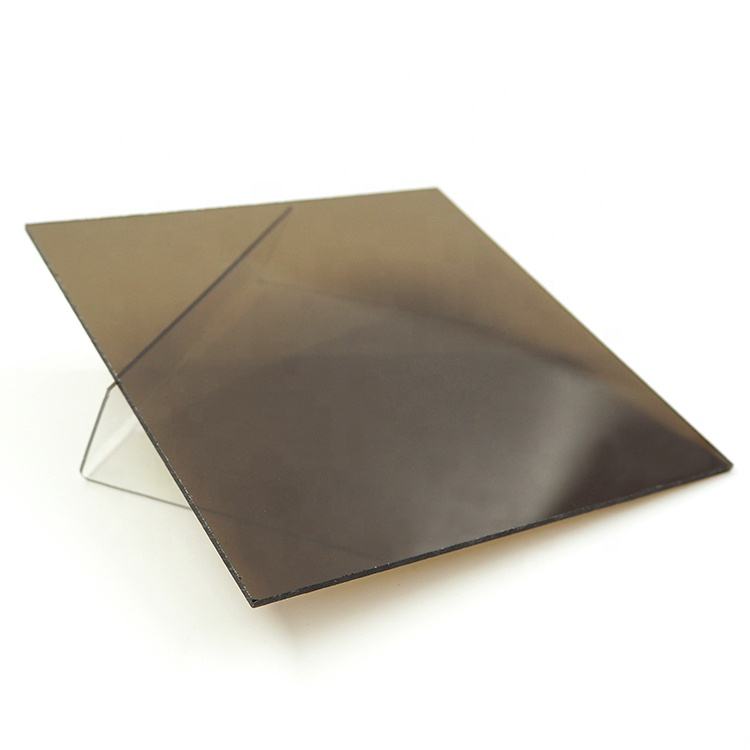

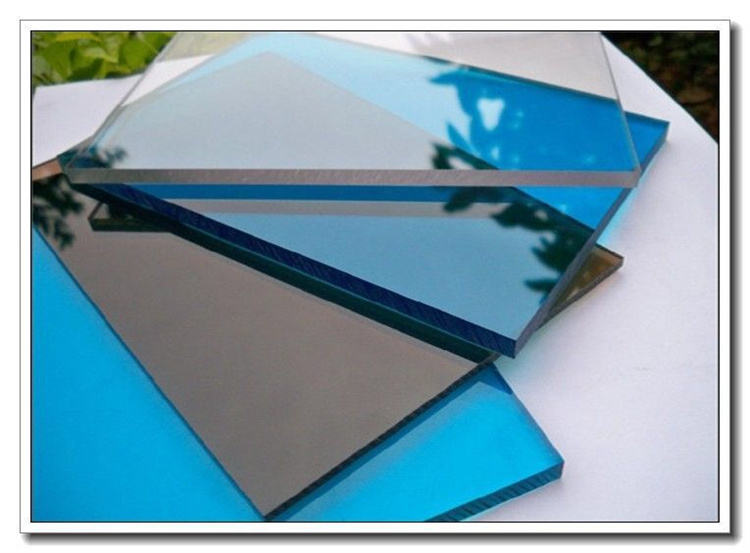

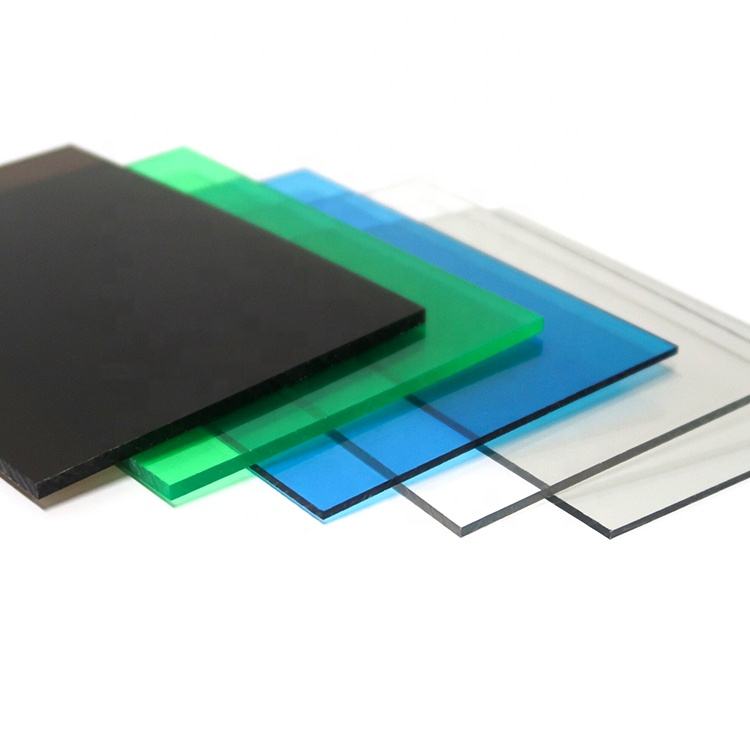

Polycarbonate solid sheet：

It is a transparent, resistible and high-toughness material, despite its lightweight, which is covered with

double-sided UV-protection and has no internal voids. The qualities of Solid PC allow it to be implemented as safety glazing and protective screen.

Solid polycarbonate sheet:

It is used everywhere - from engineering and medicine to furniture and office interiors. High impact resistance makes a solid PC the best option for outdoor structures that are influenced by weather conditions.

Performance	Preponderance

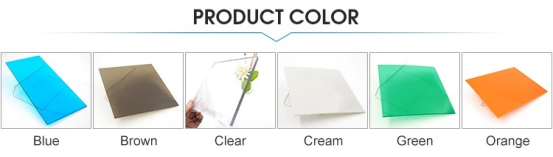

Light Transmission	Depending on the color, the transmittance can reach 0-89%
Energy saving	The Heat Transfer Coefficient (K value)is 1.5-1.7 times of the same thickness glass
Light weight	The weightis 1 / 15 of the same thickness of glass
Impact Resistance	Good toughness, not easy to be damaged in transportation, installation and use, impact strength of 250 times of PLEXIGLASS for 30 times

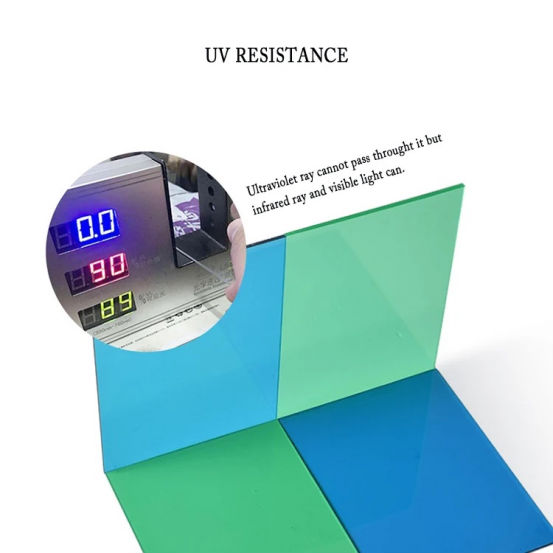

Ageing resistance	The surface contains anti-ultraviolet co-extrusion layer, outdoor weather resistance is good, long-term use still maintain good optical and mechanical properties
Wind Resistance	Wind pressure resistance up to national standard GB/T 7106-2008
Weather Resistance	Long-term Service Temperature:-40 °c-120 °c
Soundproof	Polycarbonate materials have good sound insulation characteristics, can effectively reduce the noise
Flame retardant	PC board from the fire after self-extinguishing, will not contribute to the spread of the fire
Good toughness	Bending Resistance, non-cracking, endurance plate has good toughness, can be bent, the minimum bending radius for its 175 times the thickness of the plate

Features	Unit	Date
Specific Gravity	g/cm²	1.2
LightTransmission	%	88
lmpactStrength	J/m	850
The Bending Strength	N/mm²	100
Tensile Strength	N/mm²	>=60
Modulus of Elasticity	M pa	2400
Tensile Stressat Break	M pa	>=65
Elongation at Break	%	>100
Specific Heat	KJ/KG·K	1.17
Heat Conductivity	W/m²·K	0.2
Heat Deflection Temperature	°C	140
Coefficient of Thermal Expansion	mm/m·°C	0.067
Range of Temperature	°C	-40~+120
Effect of Soundproof	10mm PC sheet	Attenuation 33 DB

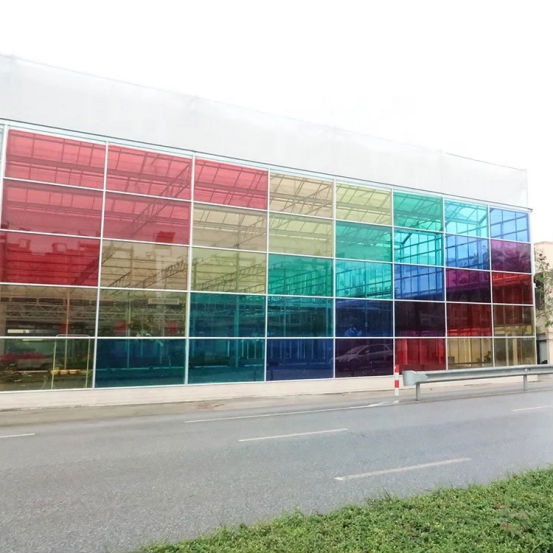

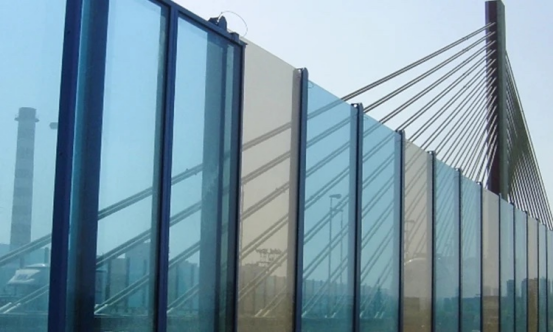

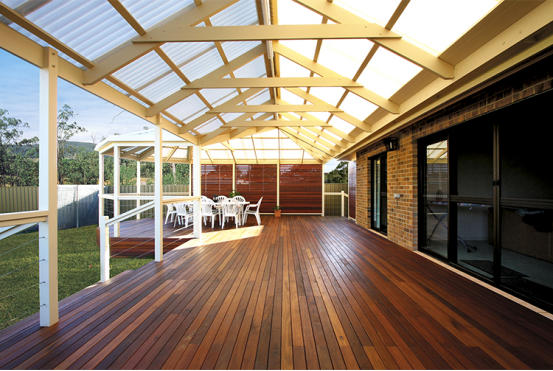

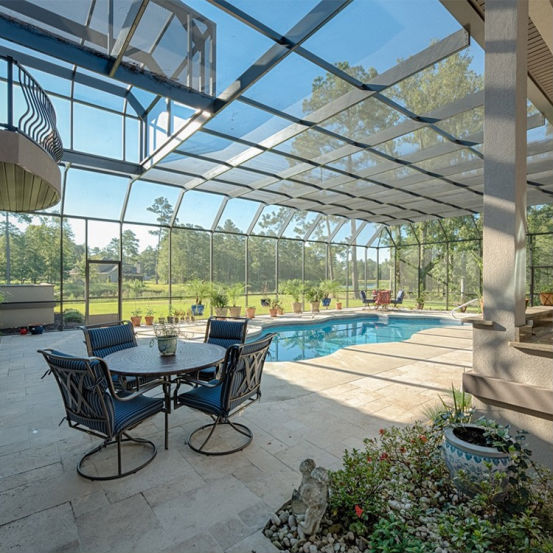

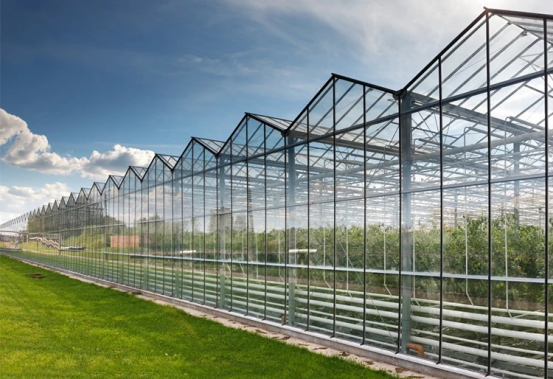

Functional application:

Product packaging

1. One pcs polycarbonate sheet packing: covered with craft paper or PE film.

2. With pallet Bulk cargo packing: 1.5-2 tons per pallet, use wood pallets on the bottom, with packaging waterproof fabric, film packages, and all around to ensure transportation security and prevent damage to the products.

3. Full container load packing: 20-26 tons of a 20-foot container with 10 -12

pallets.
