Lightweight Polycarbonate Clear Steel Tile Press Transmission Corrugated For Greenhouse Roofing Sheets

Previous Next

Detail

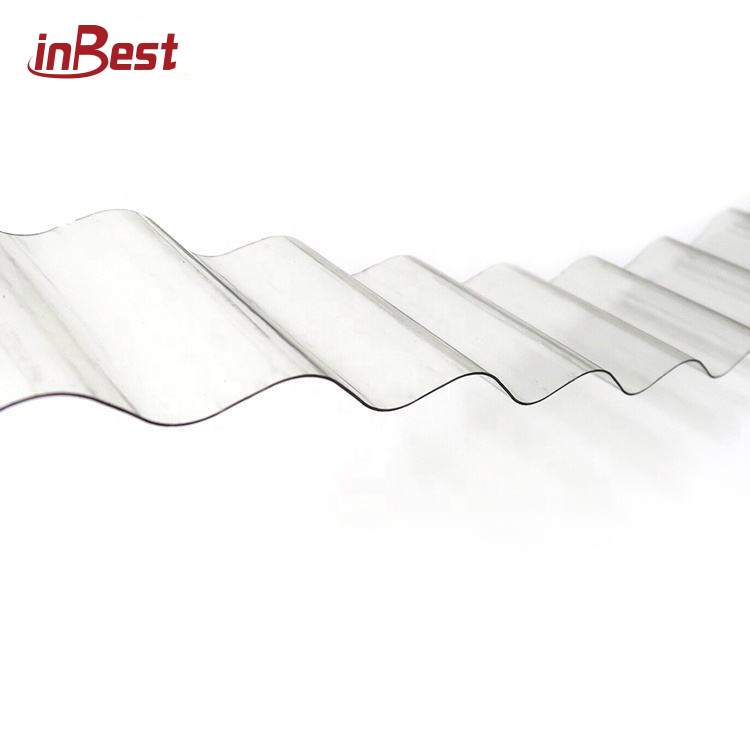

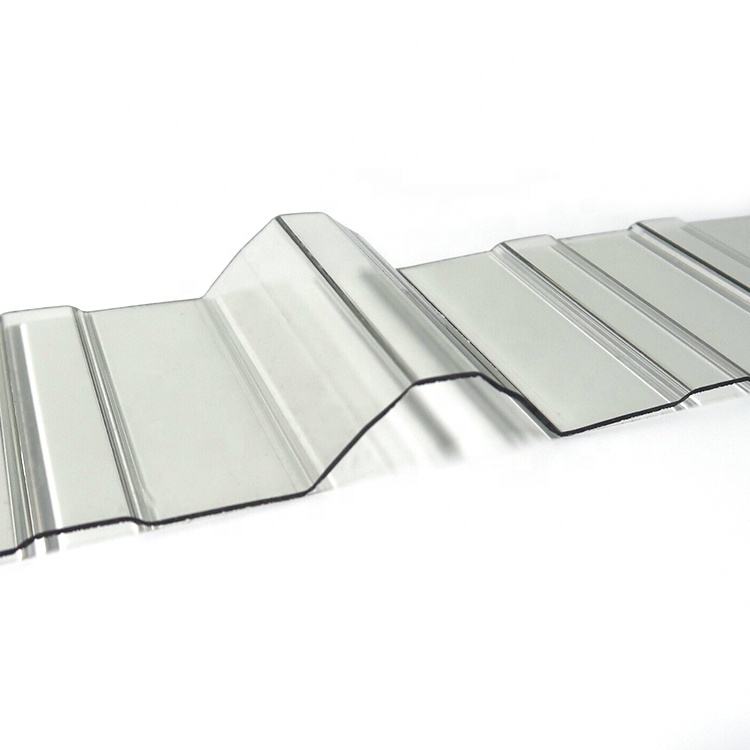

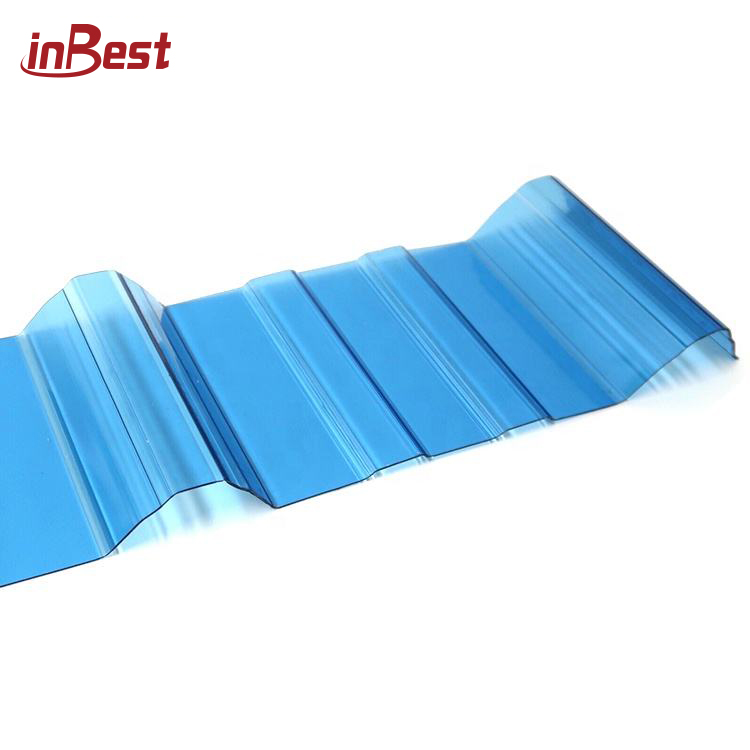

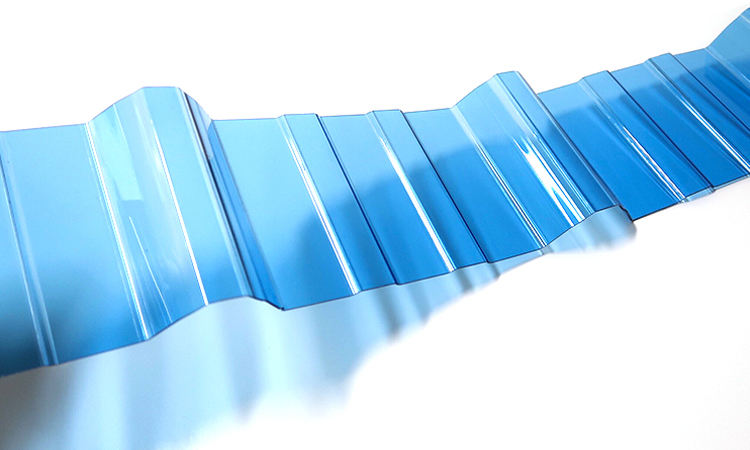

Polycarbonate Corrugated Sheets

Products Description

The surface of this product is covered with 23 μ M U.M anti-aging film to improve its weather resistance. The cross in the product structure helps to improve the impact resistance of FRP plates. When affected by external force or hail, they will hardly break.

It is a thermal solid polymer material. Designed for normal use at temperatures from - 40 ° C to 120 ° C. Its thermal expansion coefficient is 2.2 x 10-5mm/mm/° C, so when it is matched with the metal plate, the displacement is relatively small and it is not easy to leak.

Details Images

Roof PC tile: not only has good light transmission performance, but also can prevent rain, shade and eliminate noise

1. Exceptional light transmission ：Extreme clarity ensures excellent light transmission. Solid polycarbonate sheet with light transmission up to 88% can compare favorably with glass.

2. Lightweight ：The weight of solid polycarbonate sheet is only one half of glass of the same volume. Light weight saves freight and installation costs.

Product Paramenters

Light Transmission	Depending on the color, the transmittance can be up to 0-89%.
Energy saving	Low heat transfer coefficient (K value), good thermal insulation, energy saving is 1.5-1.7 times of the same thickness of glass.
Light	The weight is 1/15 of the same thickness of glass.
Impact Strength	Good toughness, not easy to be damaged in transportation, installation and use;Its impact strength is 250 times that of glass and 30 times that of plexiglass.
Resistance to aging	The surface of the product contains a UV-resistant coextruded layer, outdoor weather resistance is good, long-term use still maintain good optical properties and mechanical properties
Resistance to wind pressure	Wind pressure performance up to the national standard GB/T 7106-2008 level 1.
Large temperature difference	Long-term use temperature: -40c to 120C.
Effect of Soundproof	Polycarbonate with hollow structure has good sound insulation and can effectively reduce noise.
Flame retardant	According to the national standard gb8624-2012 is class B1 flammable.
Easy to install	The minimum bending radius is 175 times the thickness of the plate.

UV radiation

Wave tile has anti-ultraviolet (UV) coating on one side and anti-condensation treatment on the other, which integrates anti-ultraviolet, heat insulation and anti-fogging functions


Application site：

*1.Industrial building industry workshop,warehouse,roof lighting. *2.Municipal construction daylighting corridor,carport,canopy,sound insulation wall. *3.The daylighting of the sports venues,outdoor swimming pool,stadiums *4.Private residential lighting,indoor partition,interior door and windows,sun room,
