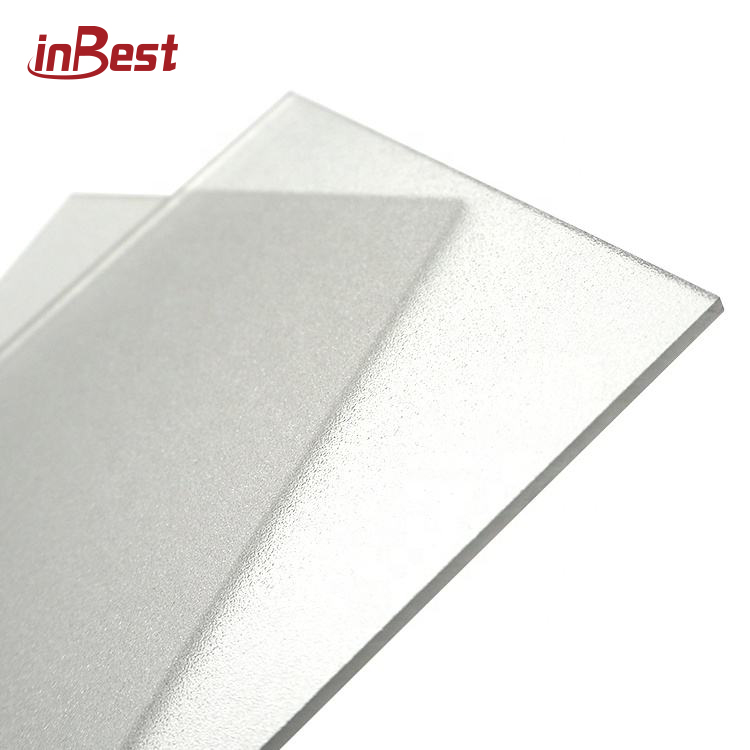

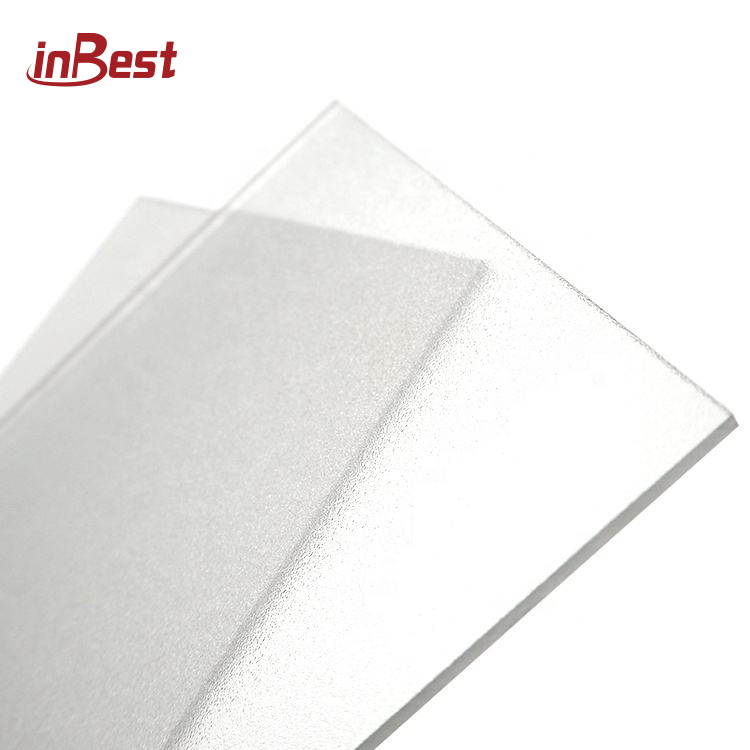

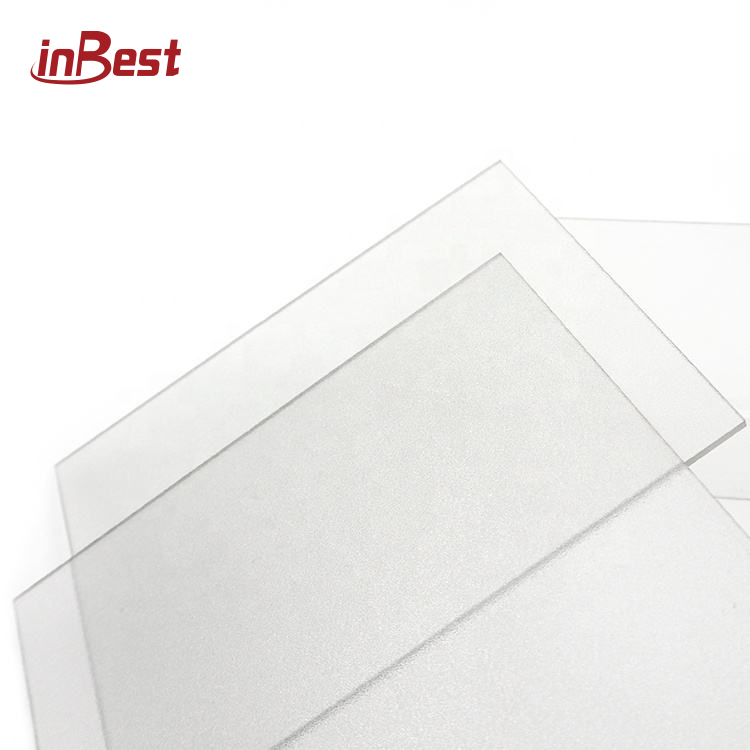

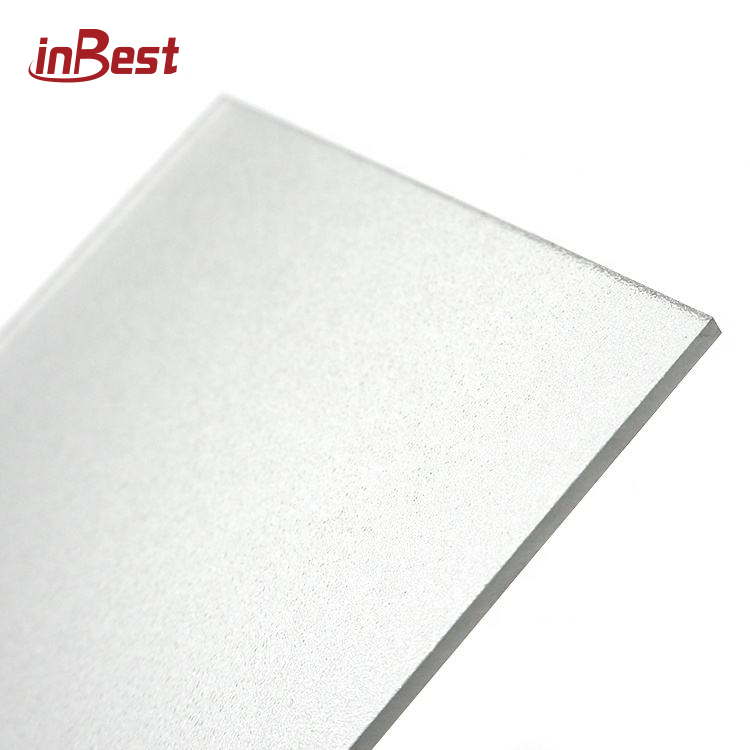

High Transmittance Solid 2MM Thick Frosted Polycarbonate Sheet

Previous Next

Detail

Frosted Polycarbonate sheet are commonly used in lampshades, electronic product shells, signs and other fields, and their high transparency and impact resistance are suitable for use in various environments.
Due to the super scattering and privacy protection functions of PC frosted panels, they are widely used in building decoration, partition walls, protective windows and other fields.
Overall, PC frosted panels combine high transparency, high strength and protective performance, and have become a multifunctional material needed in various fields.

Product Specification

Thickness	4mm,6mm,8mm,10mm Or customized
Light Transmission	40-82%.
Width	max 2100mm
Light	The weight is 1/15 of the same thickness of glass.
Impact Strength	Good toughness, not easy to be damaged in transportation, installation and use;Its impact strength is 250 times that of glass
Large temperature difference	Long-term use temperature: -40c to 120C.

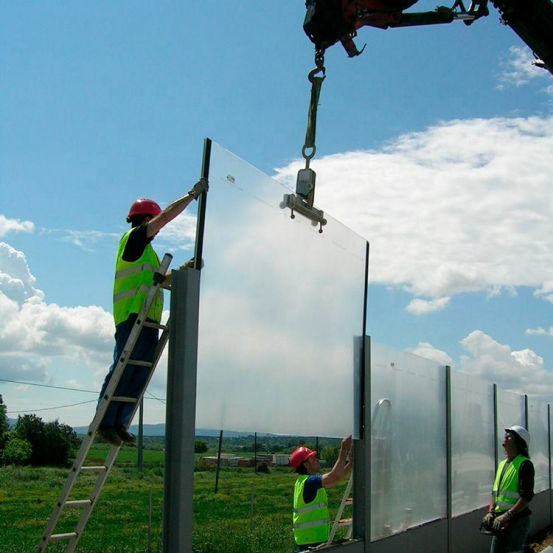

Effect of Soundproof	Polycarbonate with hollow structure has good sound insulation and can effectively reduce noise.
Flame retardant	According to the national standard gb8624-2012 is class B1 flammable.

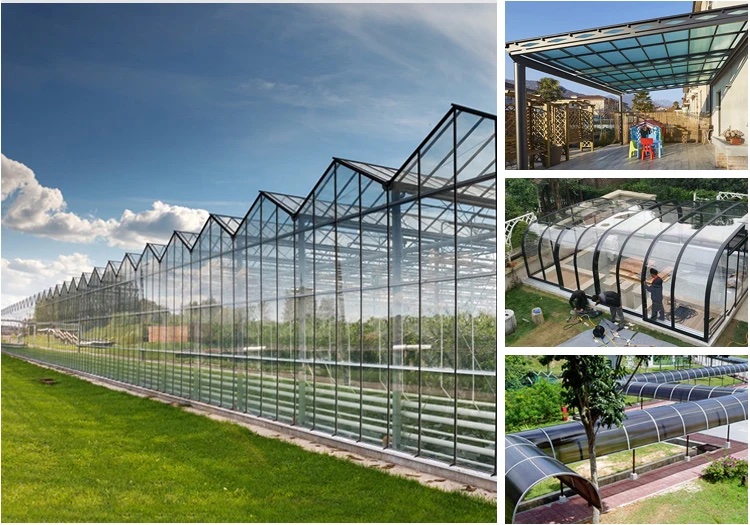

Application	Roofing,Decoractive,Partition,Green house,Carport,Building skylights,Furniture

Features	Unit	Date
Specific Gravity	g/cm²	1.2
LightTransmission	%	88
lmpactStrength	J/m	850
The Bending Strength	N/mm²	100
Tensile Strength	N/mm²	>=60
Modulus of Elasticity	M pa	2400
Tensile Stressat Break	M pa	>=65
Elongation at Break	%	>100
Specific Heat	KJ/KG·K	1.17
Heat Conductivity	W/m²·K	0.2
Heat Deflection Temperature	°C	140
Coefficient of Thermal Expansion	mm/m·°C	0.067
Range of Temperature	°C	-40~+120
Effect of Soundproof	10mm PC sheet	Attenuation 33 DB

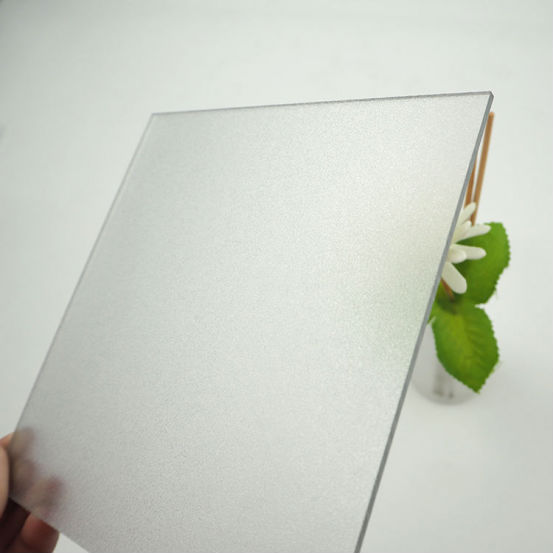

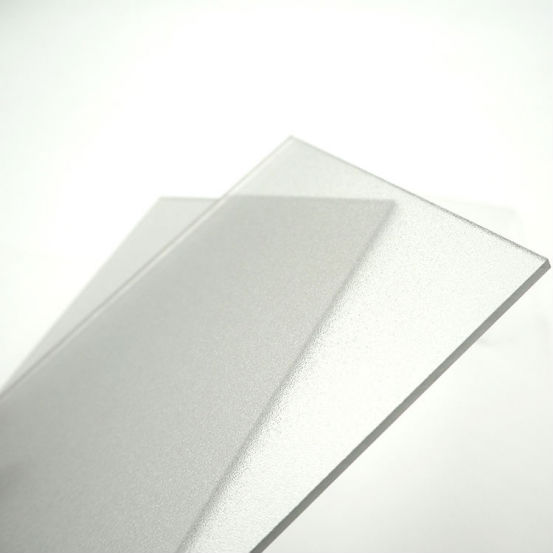

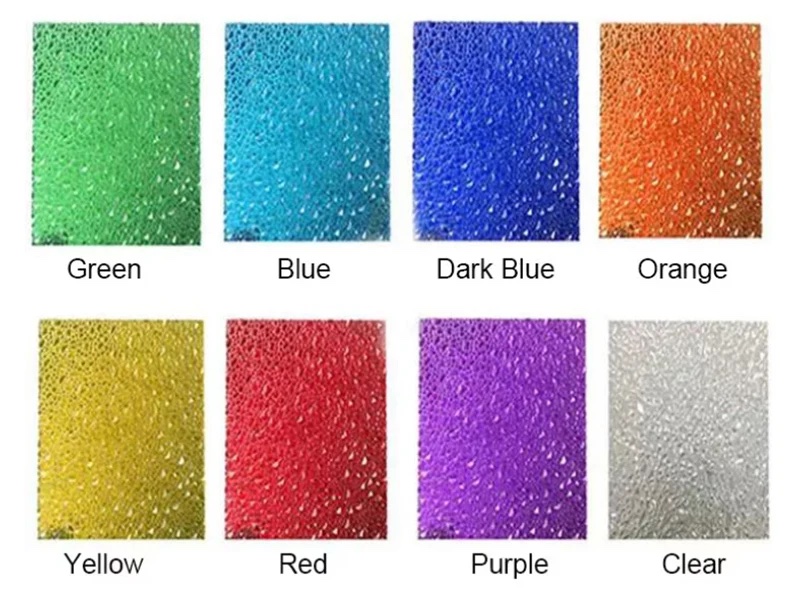

Product effect

Product packaging

1. One pcs polycarbonate sheet packing: covered with craft paper or PE film.

2. With pallet Bulk cargo packing: 1.5-2 tons per pallet, use wood pallets on the bottom, with packaging waterproof fabric, film packages, and all around to ensure transportation security and prevent damage to the products.

3. Full container load packing: 20-26 tons of a 20-foot container with 10 -12

pallets.
