Clear Sun Sheet Fire Retardant Cheap Solid 3. Polycarbonate Frosted Sheet For Roofing

Previous Next

Detail

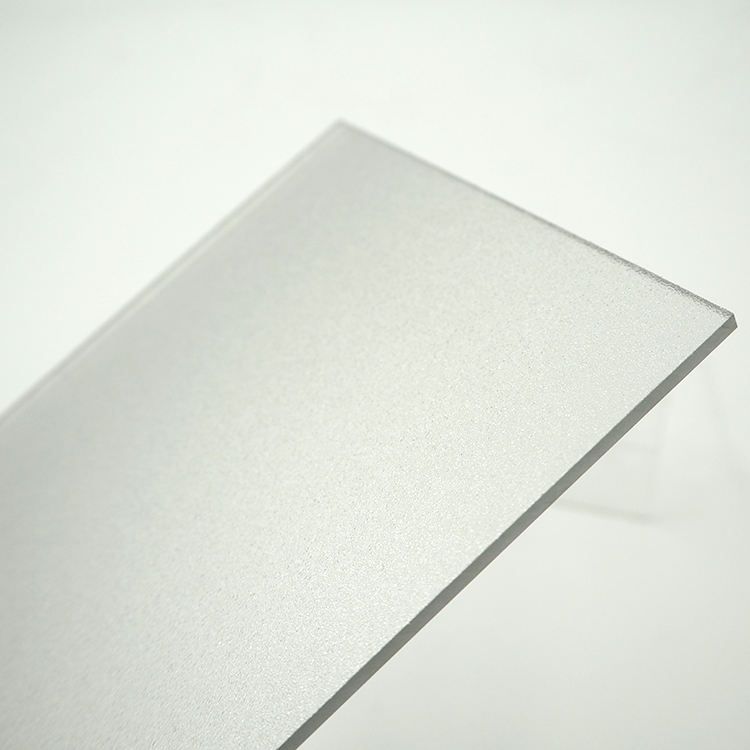

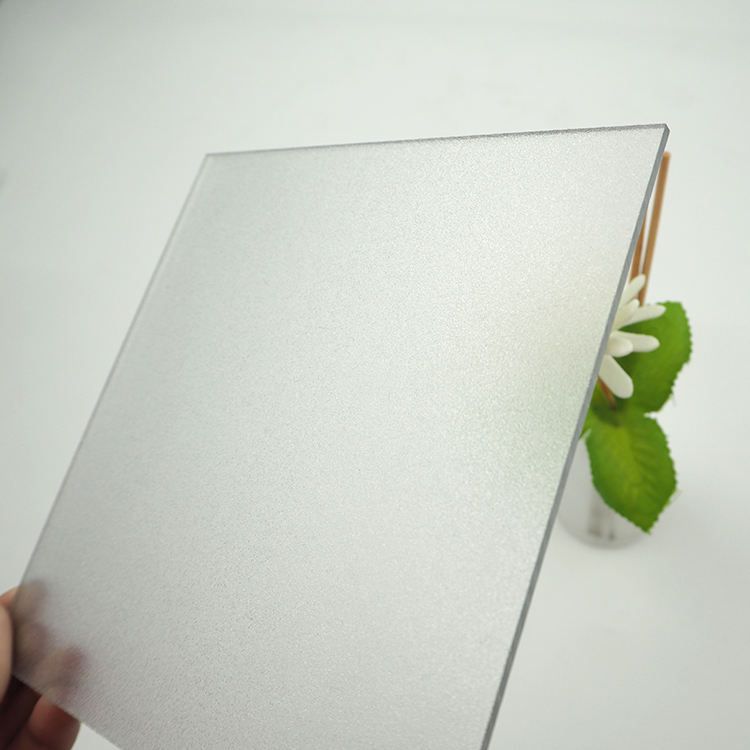

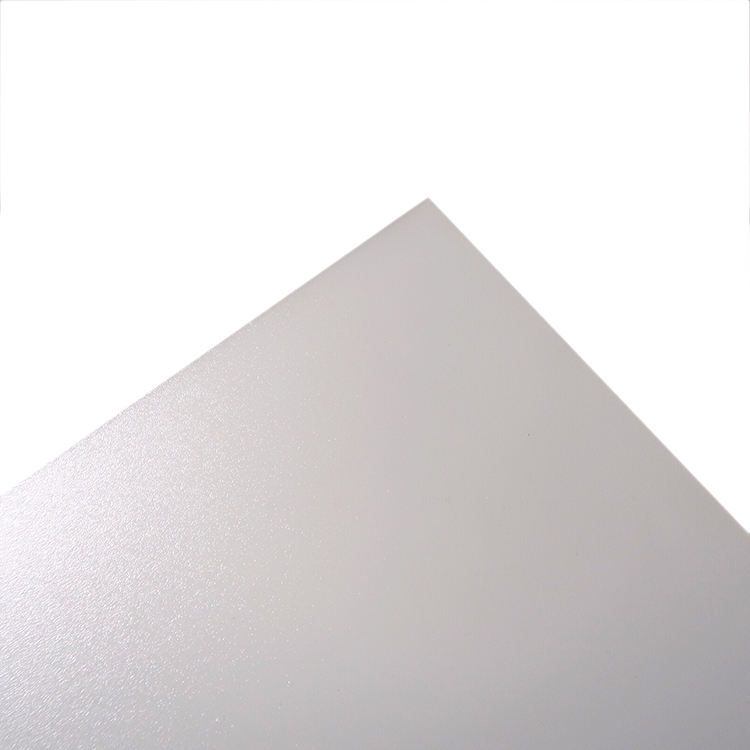

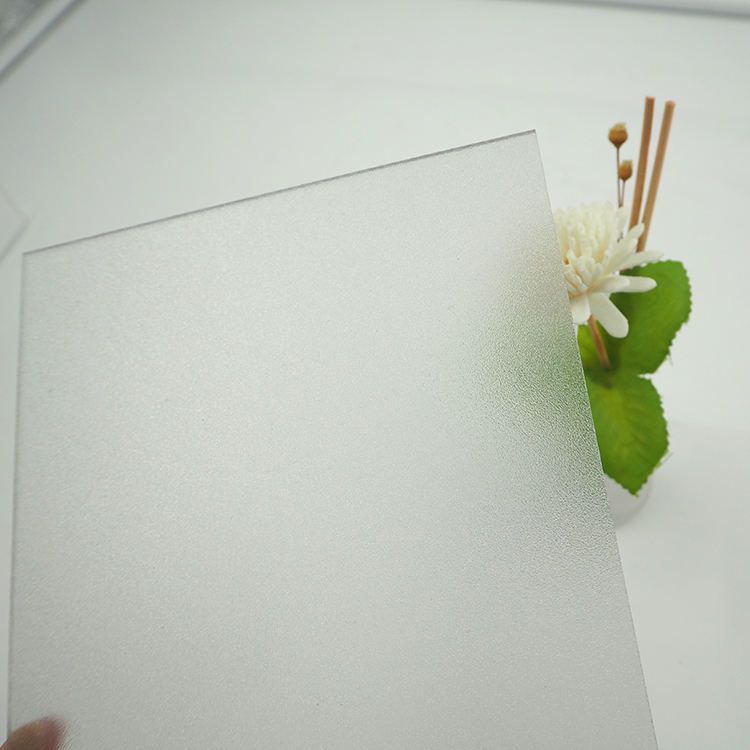

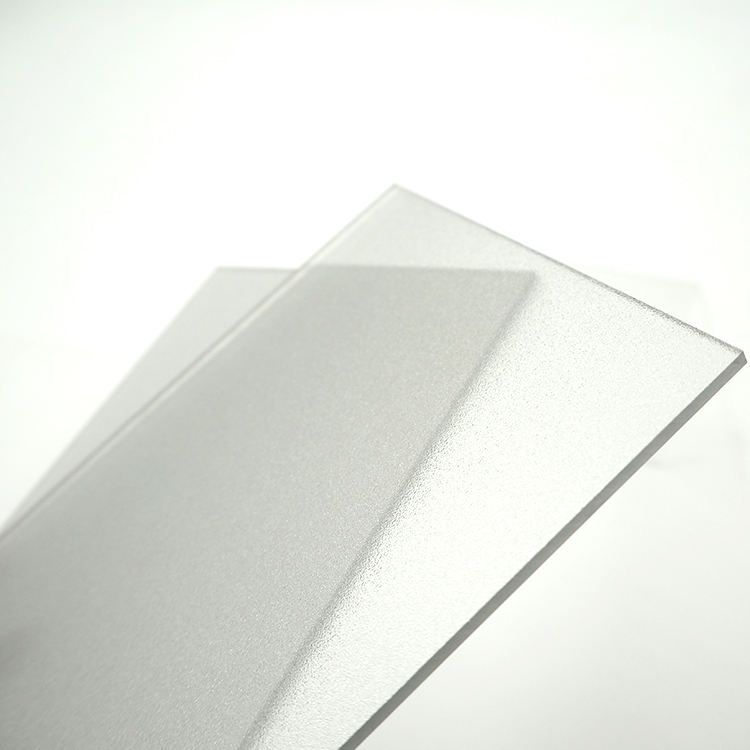

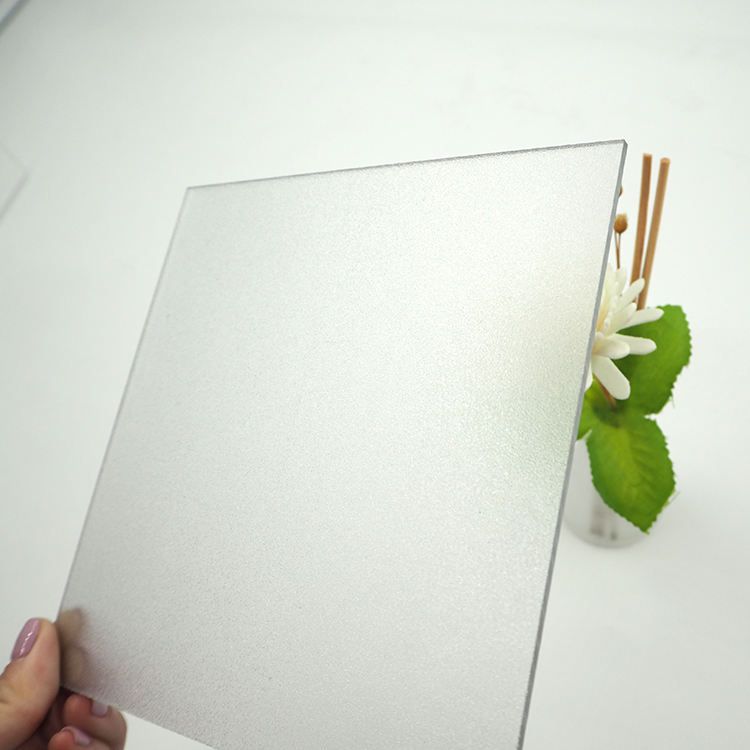

Embossed Polycarbonate Sheets

also known as embossed polycarbonate particle board, is a common plastic sheet made of polycarbonate material by extrusion.

Embossed Polycarbonate Sheets

has a wide range of applications, such as advertising boards, advertising light boxes, skylights, decorative engineering, and installation of protective covers. At the same time, its ultra-strong impact resistance makes it widely used in various glass substitutes and electronic and electrical industries where screens and glass casings need to be protected.

Product Specification

Thickness	4mm,6mm,8mm,10mm Or customized
Light Transmission	40-82%.
Width	max 2100mm
Light	The weight is 1/15 of the same thickness of glass.
Impact Strength	Good toughness, not easy to be damaged in transportation, installation and use;Its impact strength is 250 times that of glass
Large temperature difference	Long-term use temperature: -40c to 120C.
Effect of Soundproof	Polycarbonate with hollow structure has good sound insulation and can effectively reduce noise.
Flame retardant	According to the national standard gb8624-2012 is class B1 flammable.
Application	Roofing,Decoractive,Partition,Green house,Carport,Building skylights,Furniture

Features	Unit	Date
Specific Gravity	g/cm²	1.2
LightTransmission	%	88
lmpactStrength	J/m	850
The Bending Strength	N/mm²	100
Tensile Strength	N/mm²	>=60
Modulus of Elasticity	M pa	2400
Tensile Stressat Break	M pa	>=65
Elongation at Break	%	>100
Specific Heat	KJ/KG·K	1.17
Heat Conductivity	W/m²·K	0.2
Heat Deflection Temperature	°C	140
Coefficient of Thermal Expansion	mm/m·°C	0.067
Range of Temperature	°C	-40~+120
Effect of Soundproof	10mm PC sheet	Attenuation 33 DB
